by Brianna Crandall — July 27, 2021 — Legrand, a global specialist in electrical and network infrastructure solutions, recently announced the launch of the Cablobend Systems, a flexible wire mesh fitting designed to save labor time typically spent by electrical contractors to create vertical drops for data centers. This is the latest offering from the Cablofil brand which is the global benchmark for cable management systems, known for continuous innovation for electrical installations.

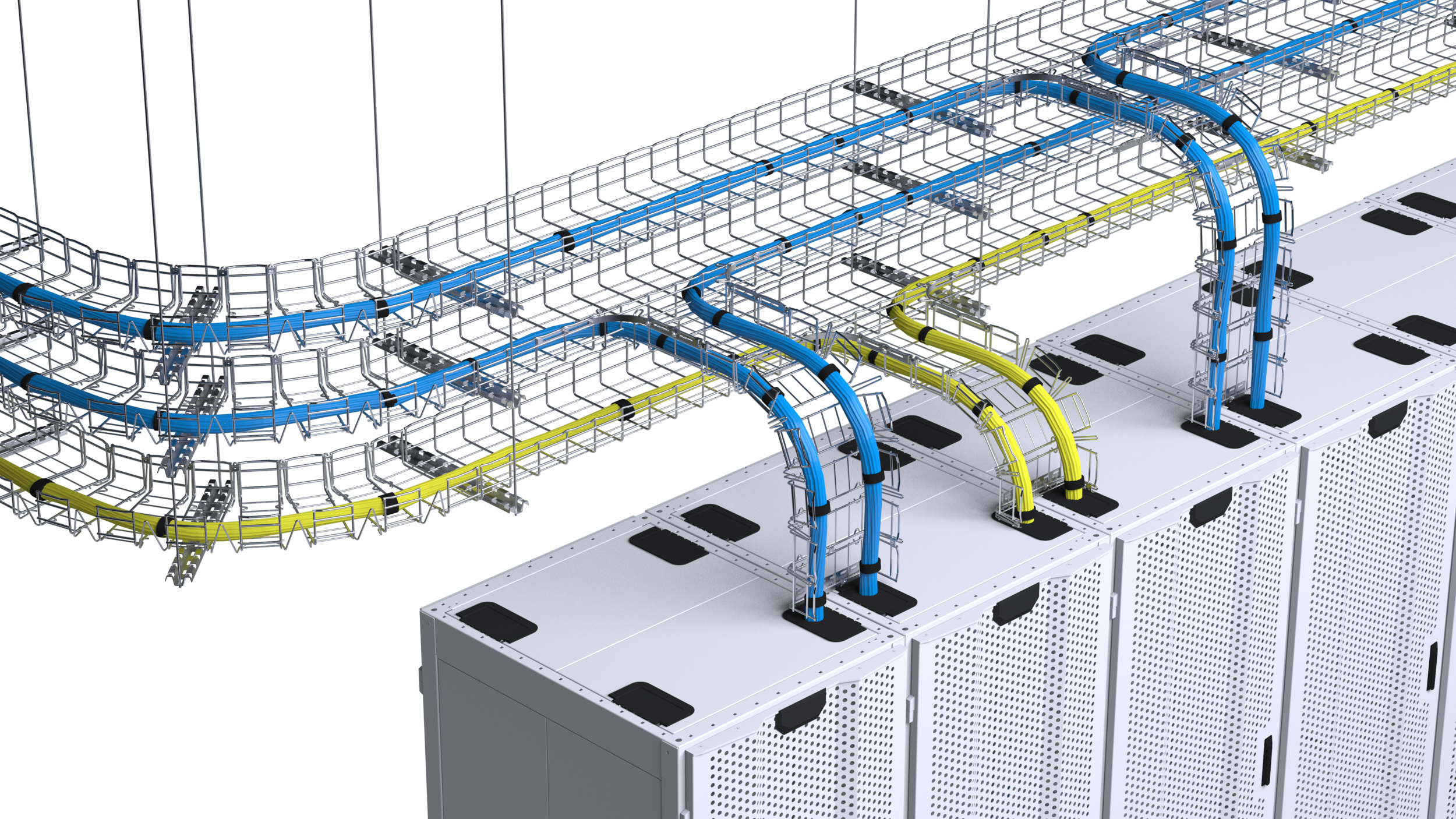

Cablobend Systems flexible wire mesh fitting saves cable installation time and labor for electrical contractors creating vertical drops for data centers. Image courtesy Legrand
The Cablobend Systems provide an entirely new way for contractors to work on data center projects, claims Legrand. Every data center requires numerous cable tray bends and drops — sometimes thousands in just one installation, explains the company. With traditional cutting and bending, each drop can take over four hours to complete. The Cablobend Systems provide the freedom to flexibly create the bends and drops needed with no cutting required.
Chris Cooper, national account manager at Legrand, explains:
In response to the cable tray market demand for faster installation of horizontal and vertical bends, we’re thrilled to provide the Cablobend System, which not only provides labor and time savings but also offers a much easier installation than competitive products. For example, vertical bends with horizontal adjustments typically take contractors four hours for one bend. Cablobend gives them the ability to do this in 15 minutes, thus drastically reducing installation time.
Cablobend Systems encompass wire mesh grid assemblies that easily bend and flex, giving contractors seamless cable runs at the most difficult installation points. With a wide variety of widths and combinations, it’s easy to create nearly every bend needed with one product, says Legrand. Contractors can simply stretch and bend the flex wires a maximum of 4” at any location to fit configurations up to 90° horizontally or vertically, or join sections together for increased rigidity and strength.

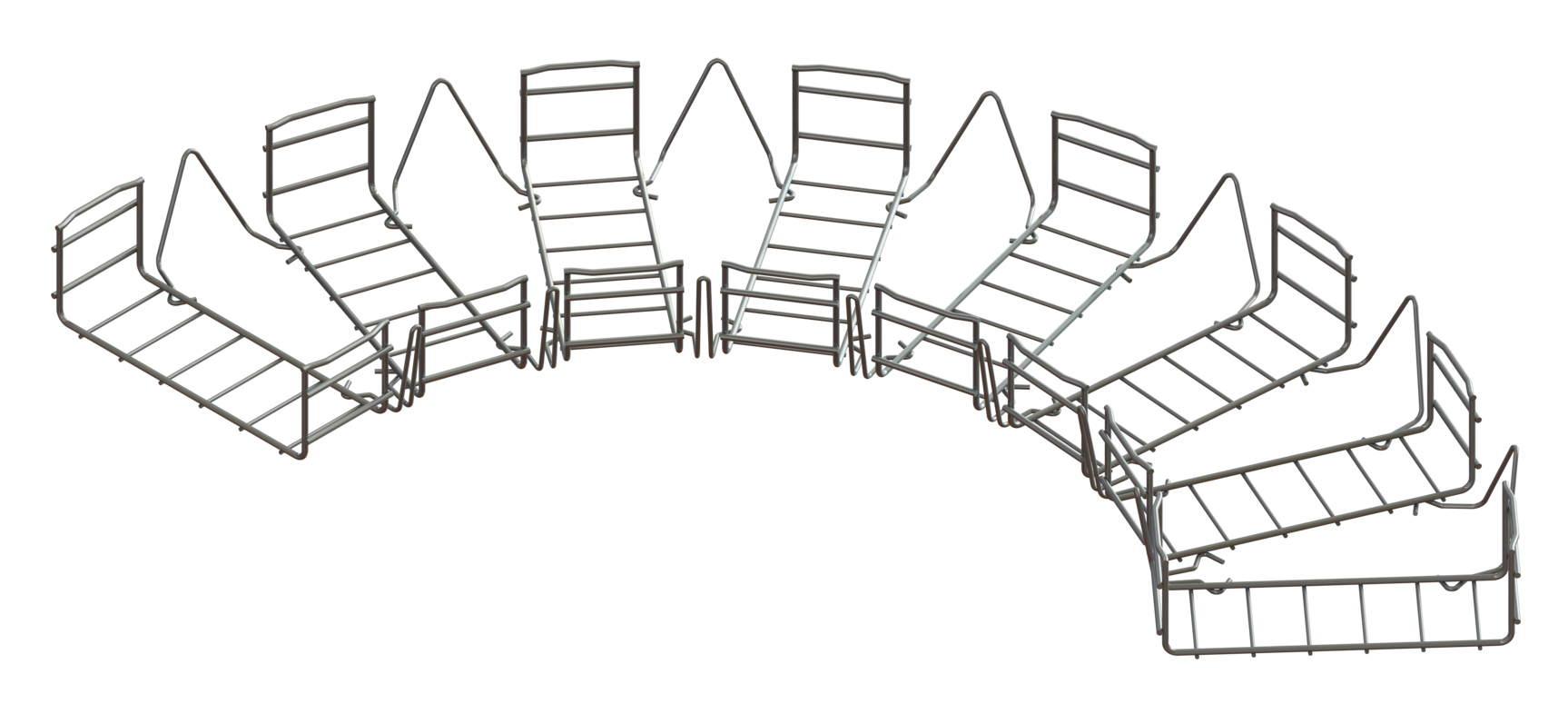

Contractors can simply stretch and bend the flex wires a maximum of 4” at any location to fit configurations up to 90° horizontally or vertically, or join sections together for increased rigidity and strength. Image courtesy Legrand
With a variety of widths and combinations available, the system offers the freedom to create exactly what is needed. Available in three heights (2”, 4”, and 6”), seven widths (6”, 8”, 12”, 18”, and 24”), and two finishes (silver and black), each segment can lock easily in the field for rigidity. The complete system arrives at the job site already welded together and pre-assembled.
For more information on the new Cablobend Systems, visit legrand.us. The France-based company operates in nearly 90 countries globally, and incorporates numerous brands.
