Posted by Janet Stroud — May 11, 2023 — Taco Comfort Solutions has expanded its family of easy-to-use, high-efficiency ECM circulators with the addition of the 0026e. With a maximum of 26 feet of head and 44 GPM, the new variable-speed circulator offers up to 85 percent
energy savings over a conventional circulator.

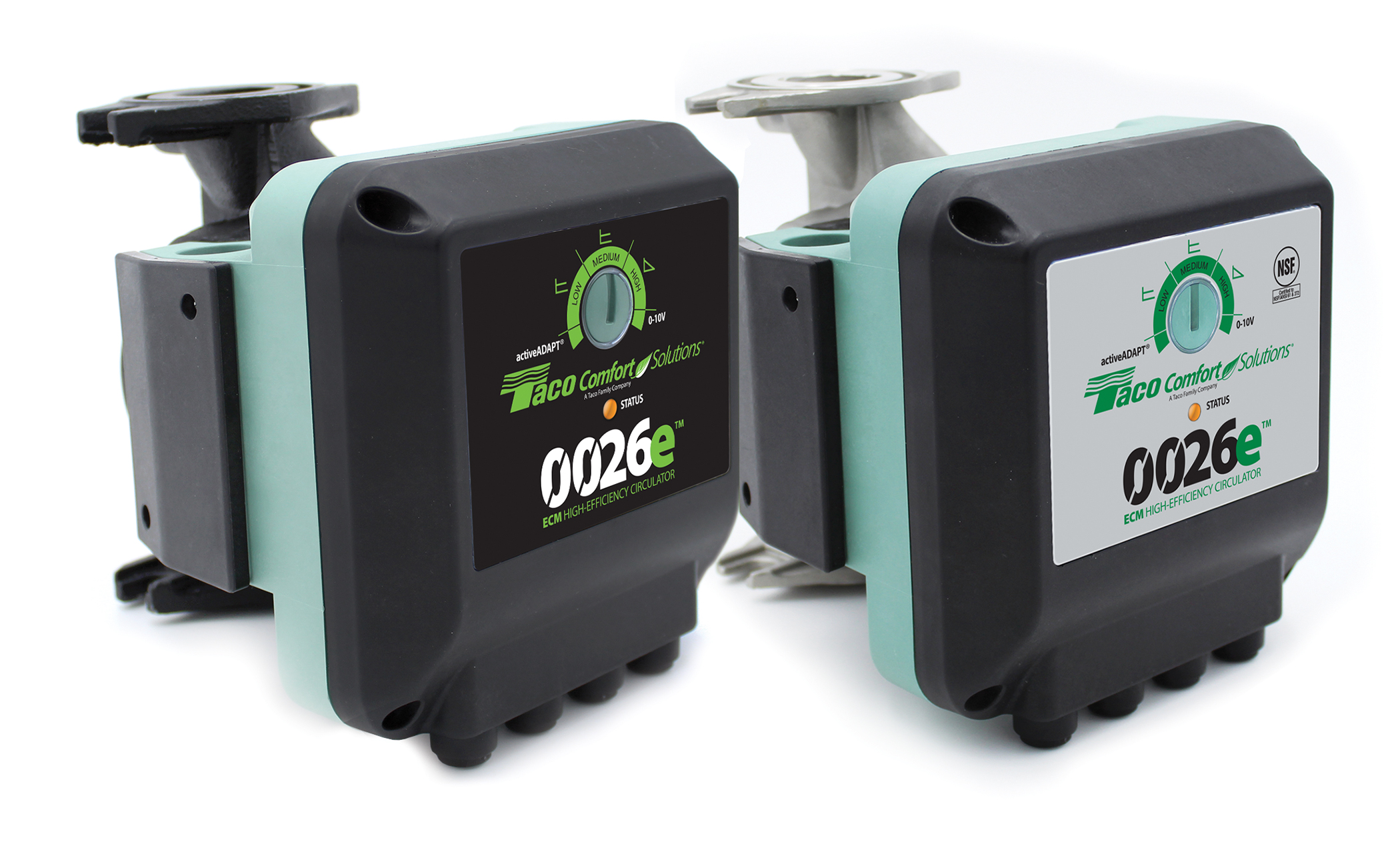

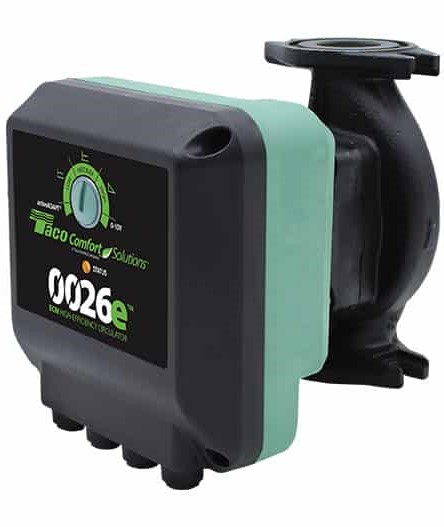

The 0026e ECM High-Efficiency Circulator is available with cast iron or NSF/ANSI 61 & 372 certified stainless steel volutes, ideal for either closed-loop heating systems or domestic hot water systems. It also offers a convenient, rotatable control box for a professional look, no matter the orientation of the installed circulator.
The easy-to-install, easy-to-program 0026e circulator features five simple settings; low, medium, high, Taco’s exclusive activeADAPT self-adjusting proportional pressure, and 0-10v control. Its variable speed performance curves are equivalent to Taco’s 0010, 0011, 0012, 0012 and 0014 models.
Hydronic system designers and installers will find that the new variable-speed circulator can be ideal for large residential and light commercial heating, chilled water cooling and domestic hot water systems. The 0026e is dual-voltage 115V/230V, and the 6.5” rotated flange-to-flange dimension retrofits most circulators in its class.
The new circulator includes exclusive features that make Taco’s ECM high-efficiency circulators easy to use, including SureStart automatic unblocking and air purging, BIO Barrier black iron oxide protection, dual electrical knockouts, and recessed flange nut-grabbers for easier fit-up.
For more information about the 0026e ECM High-Efficiency Circulator, visit Taco.
